Cafeteira portátil elétrica sem fio 3 em 1 com cápsulas para carro, casa e camping. Ideal para viagens e preparo de café expresso em cápsulas e pó.

SPECIFICATIONS

Brand Name: MicroData

Certification: CE

Charge voltage/current: 5V/2A

Coffee Cup Capacity: 120ml

Housing Material: Plastic

Material: ABS+304+PC

Model Number: KF-JN-02

Origin: Mainland China

Power (W): 72W

Product Capacity: 60ml

Working voltage: 12V

Product Name: portable capsule coffee machine

Product Model:KF-JN-02

Material:ABS+304+PC

Product Capacity: 60ml

Coffee Cup Capacity:120ml

Working voltage: 12V

Rated Power: 72W

Battery Capacity: 2500mAh*3

Charging Time: about 3~4 hours

Product Size:83.5*83.5*245.5mm

Packing List: host *1; charging cable *1; manual *1

Caution: Can’t Wash Host Part(To prevent water flow from entering and corroding the motherboard components, affecting normal use)Please read the instruction manual before first use and keep it if necessary.  About Coffee Extract：You can choose cold water or hot water for extract.For cold water, please operate as below steps:1.Take cap off, pour cold water into water container then close the cap.2.Press power button once to check battery level (green LED on), then long press power button to extract cold coffee (green LED running ), Red LED is running when battery level below 25%.3.If heat the cold water,press button twice to heat the water to 86℃ within 5mins ( orange LED breathing), it peeps 4 times and automatically extract hot coffee for 60S(green LED running).For hot water, please operate as below steps：1.Take cap off, pour hot water into water container then close the cap.2.Press power button once to check battery level (green LED on), then long press power button to extract hot coffee for 60S (green LED running). About Charging:1.Please charge the device in time when red LED running. Red LED is running when it’s in charging. Green LED will be on after fully charged.2.For USB cable charging, it cannot work until it is fully charged.3.Please use a certified charger head to charge the product and avoid using fast charging chargers. (Recommend using a 5V 2A charger) Cautions:1.Don’t touch red pad on the cap when it’s heating. Keep children away from device when it’s heating.2.Don’t heat the devices if there is no water inside，even though there is anti-dry heat protection for 145℃. At the status of anti-dry heat protection, LED flashes 5S and peeps 5S.3.Clean the device and keep it dry after use.

【Product upgrades】

1.New upgraded 8g coffee powder adapter，Large capacity for more ground coffee.brew your own coffee flavor.

2.Fully upgraded stainless steel water tank, better heat conductivity, water tank with water volume scale, 60mL water tank can add hot and cold water Maximum water tank capacity 70mL.

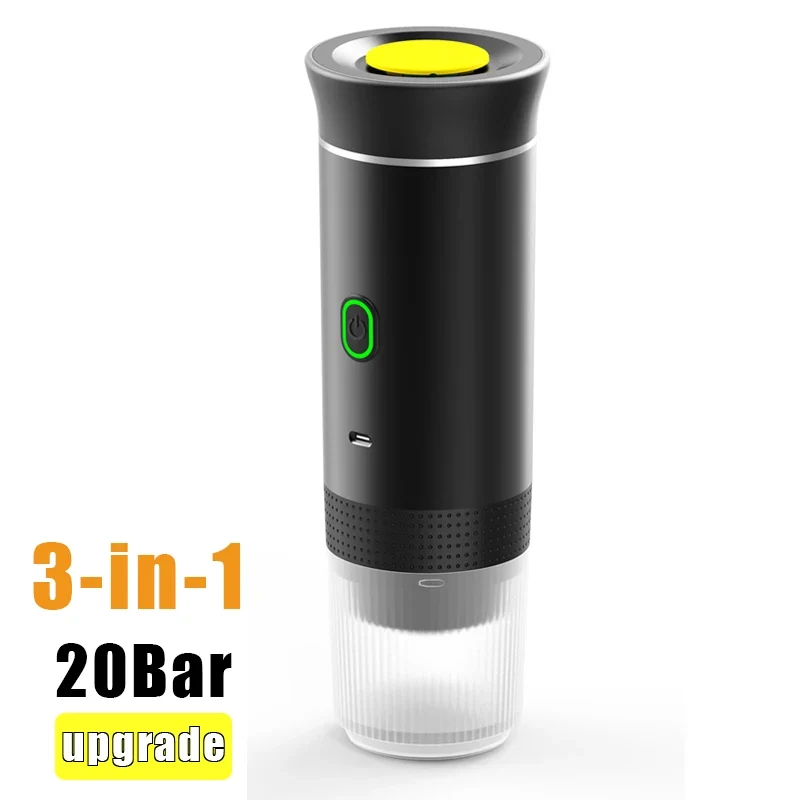

3.Newly upgraded piston pump to replace the old diaphragm pump, pump pressure up to 20 Bar high pressure extraction，The oils in the ground coffee are extracted quickly and completely under high pressure, the aroma is not lost, the coffee is more aromatic, the oils are bright in colour, medium in consistency and retained for a longer period of time.

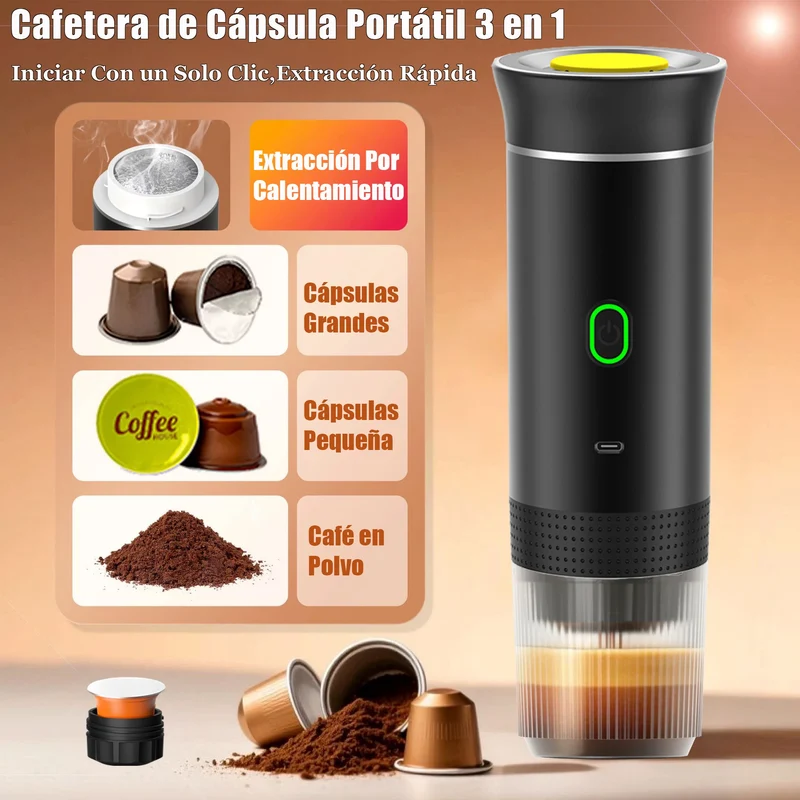

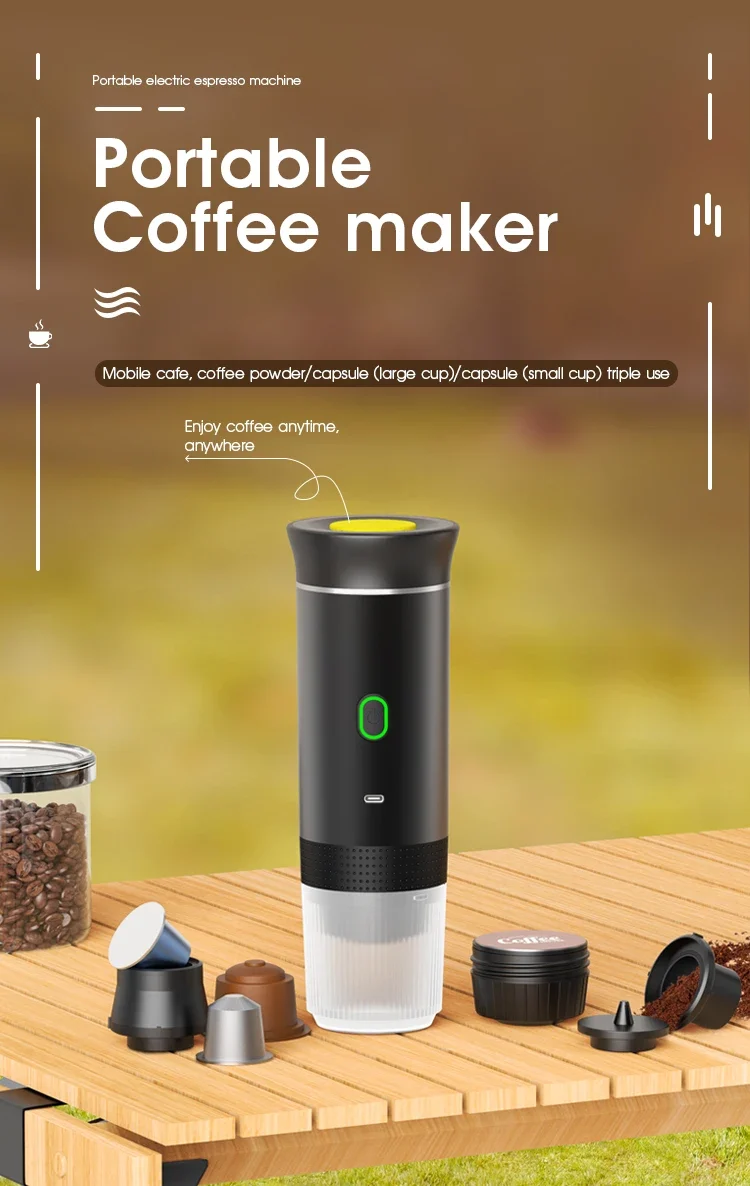

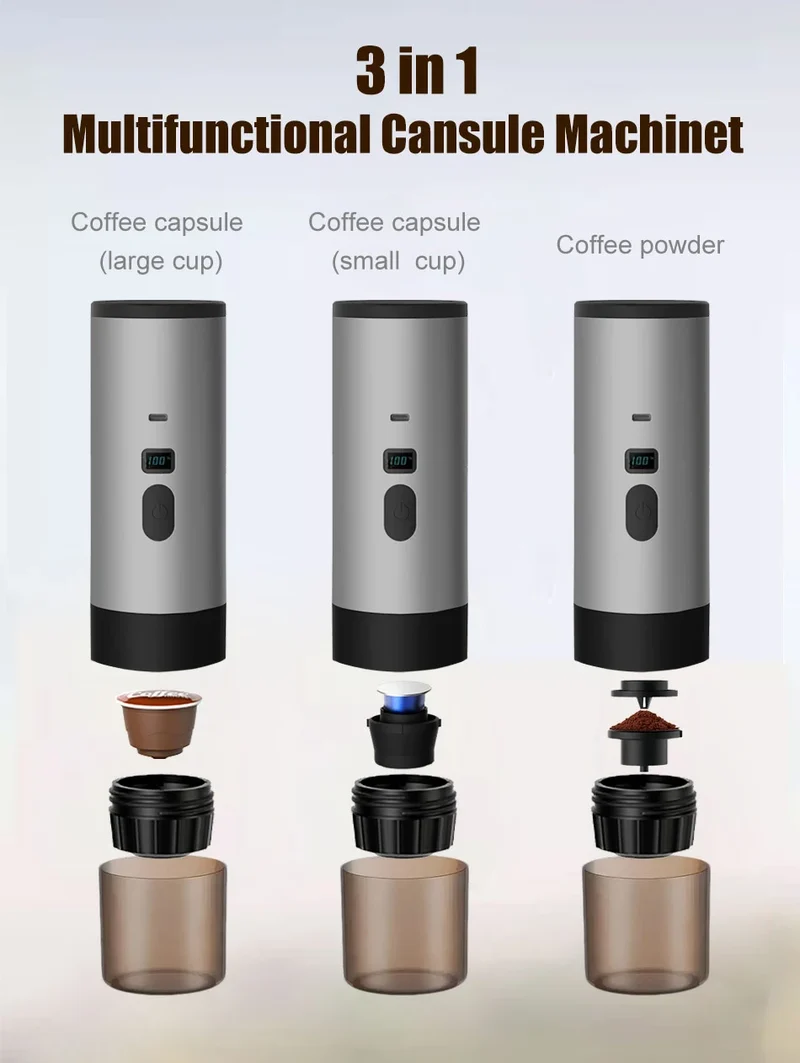

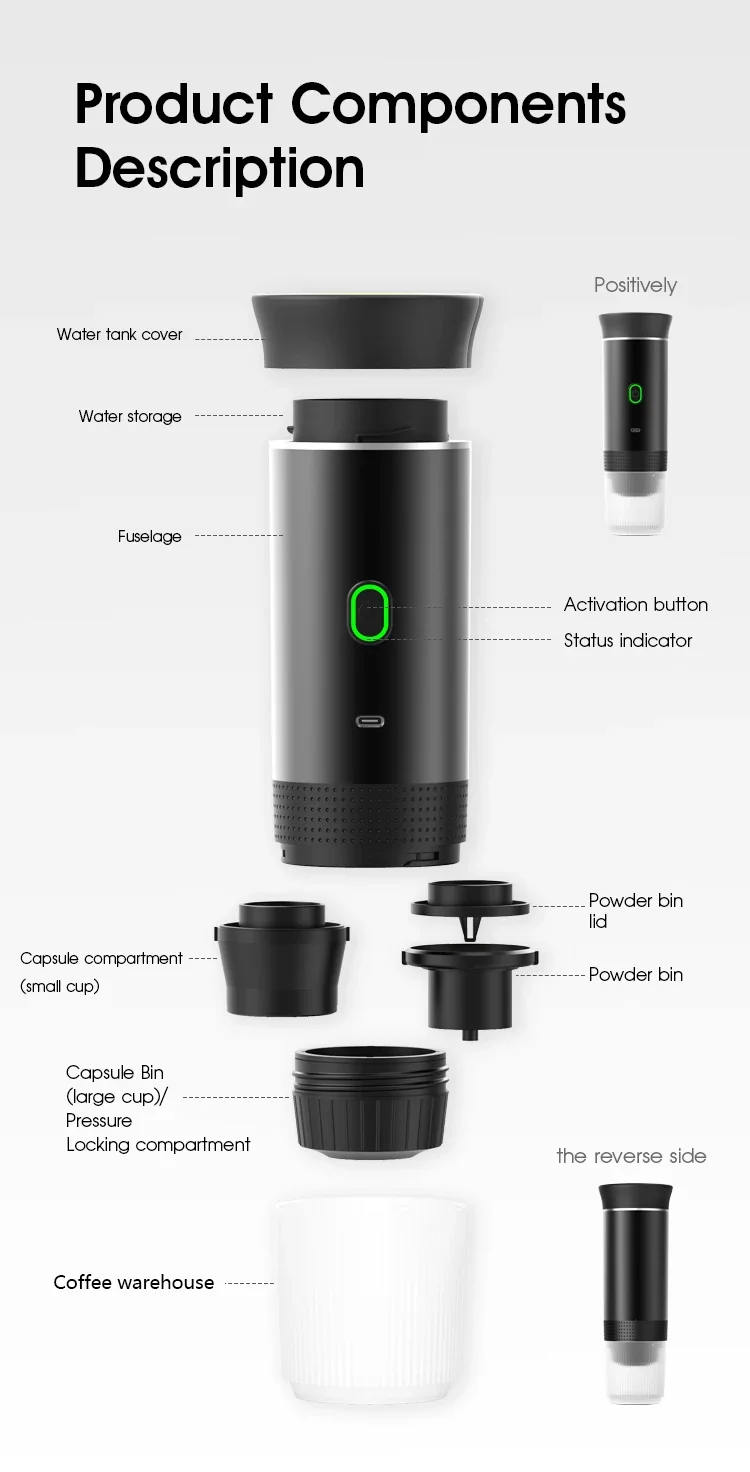

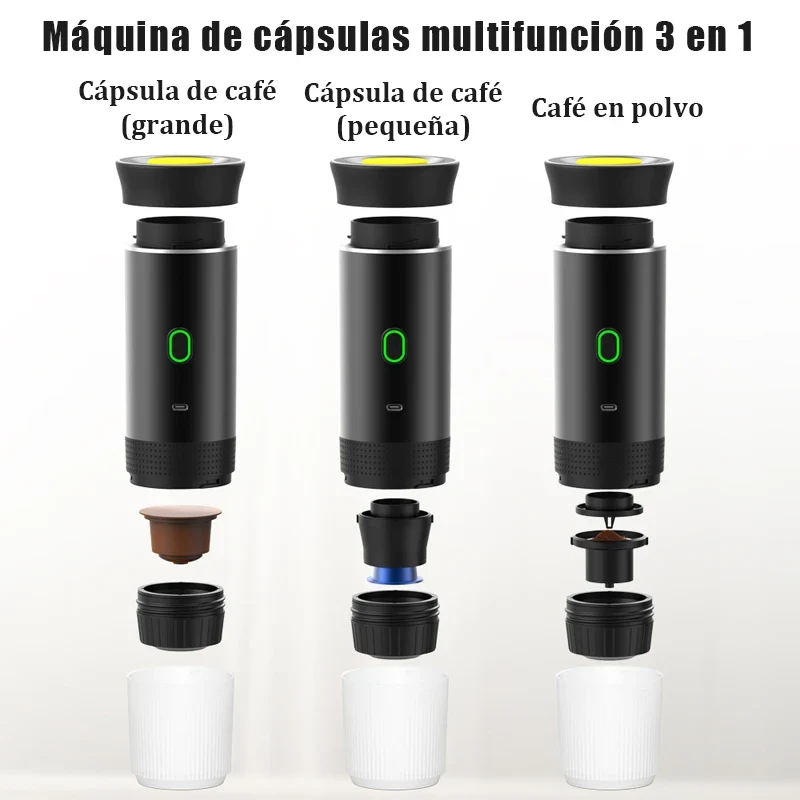

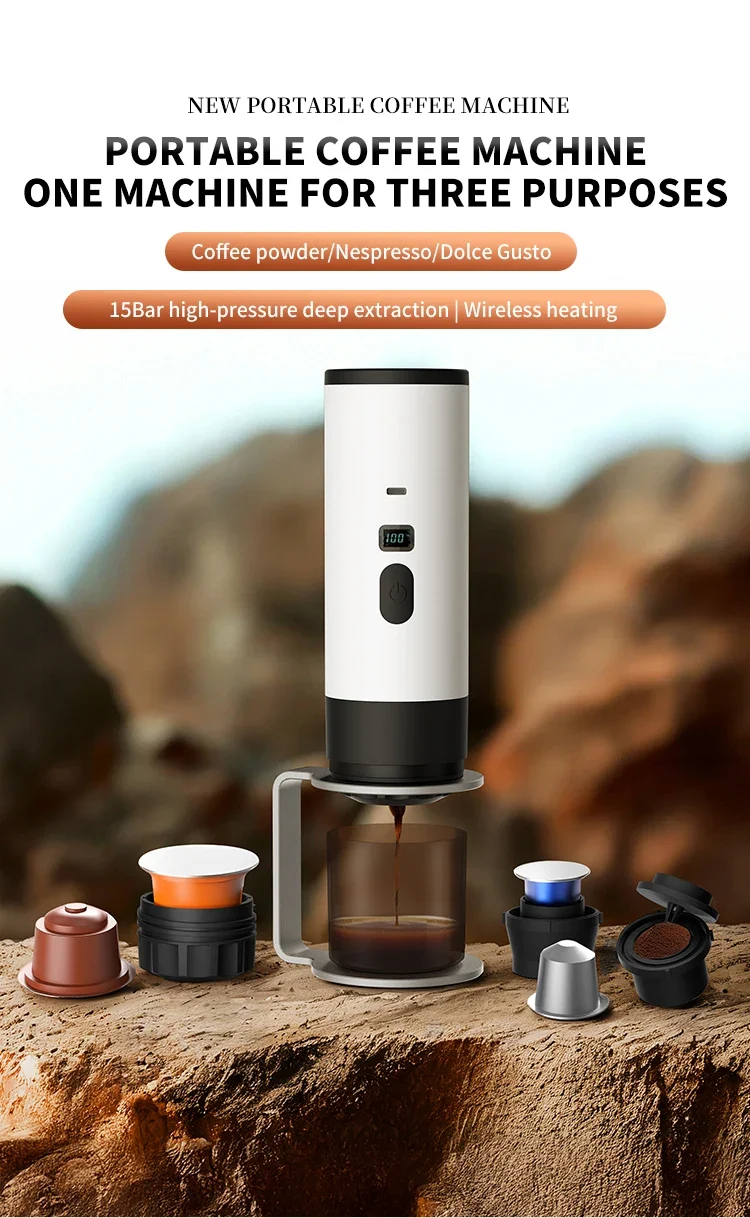

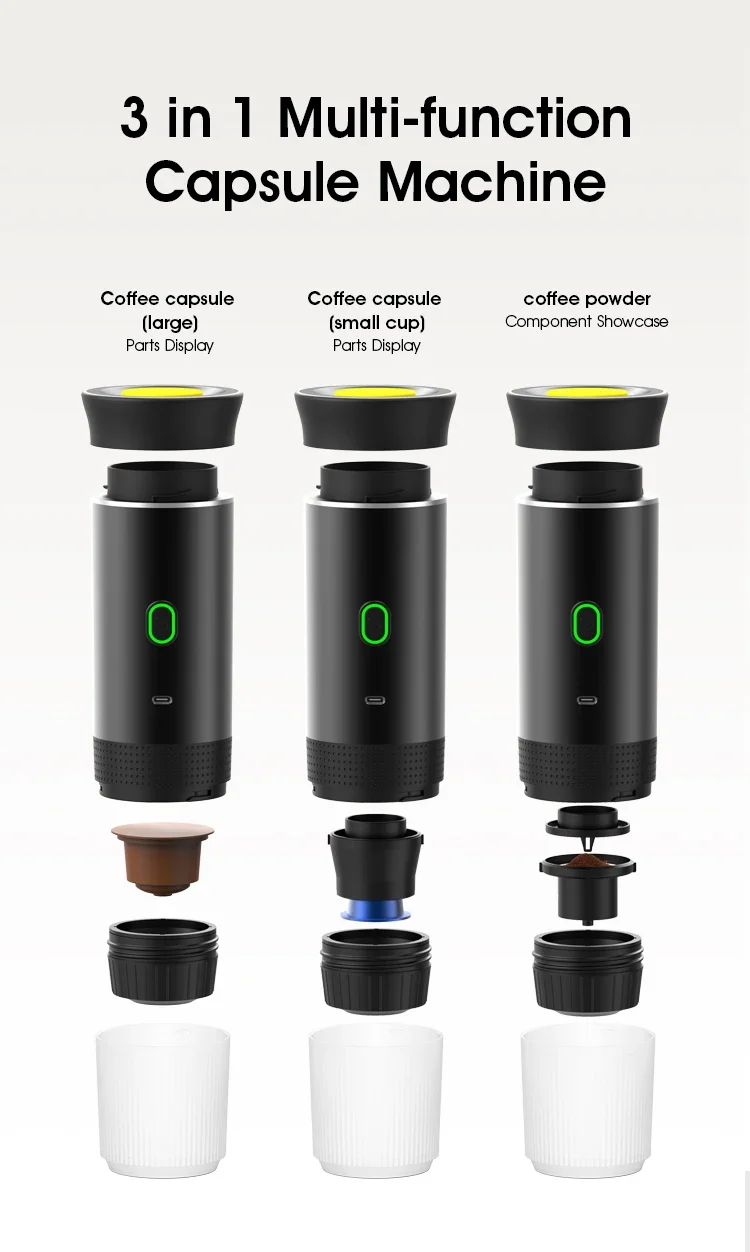

【Multi-compatible】The 3-in-1 portable espresso machine is equipped with a ground coffee compartment and a capsule compartment, which is compatible with small and large capsules and ground coffee.

【Portable and Convenient】The portable espresso machine is suitable for many occasions, convenient and easy to carry, and can be brewed directly.Water can be heated directly for extraction.

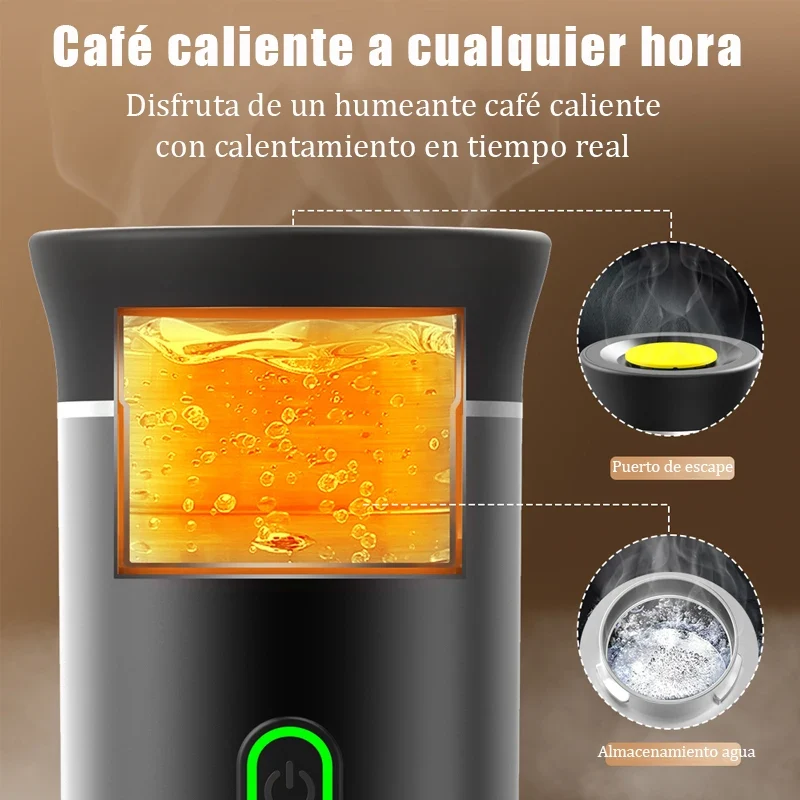

【Intelligent Extraction】Portable espresso machine adopts intelligent heating function, convenient extraction, double-click the power switch, open the heating extraction function, heating extraction. Long press the power switch, directly open the extraction function, convenient operation, suitable for all kinds of hot/cold drinking water.

【Convenient Charging】Portable espresso machine can be charged on the go, portable charging, equipped with Type-C USB cable charging methods, support charging while using, suitable for travelling, camping, driving, home and office.

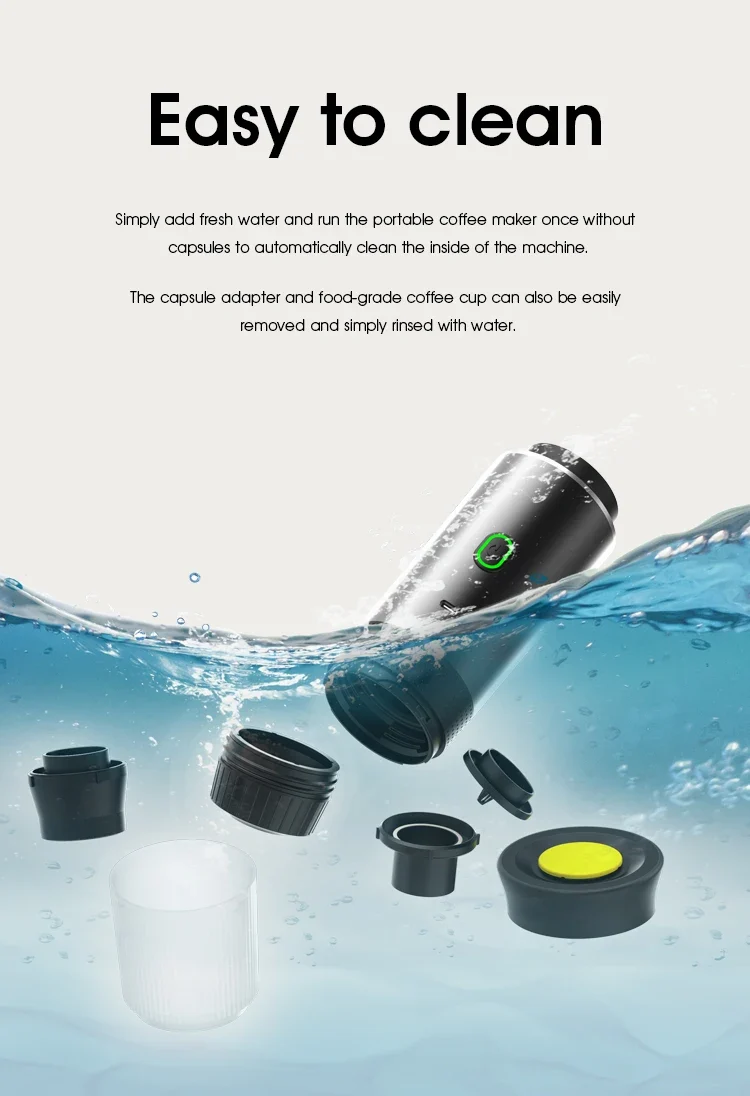

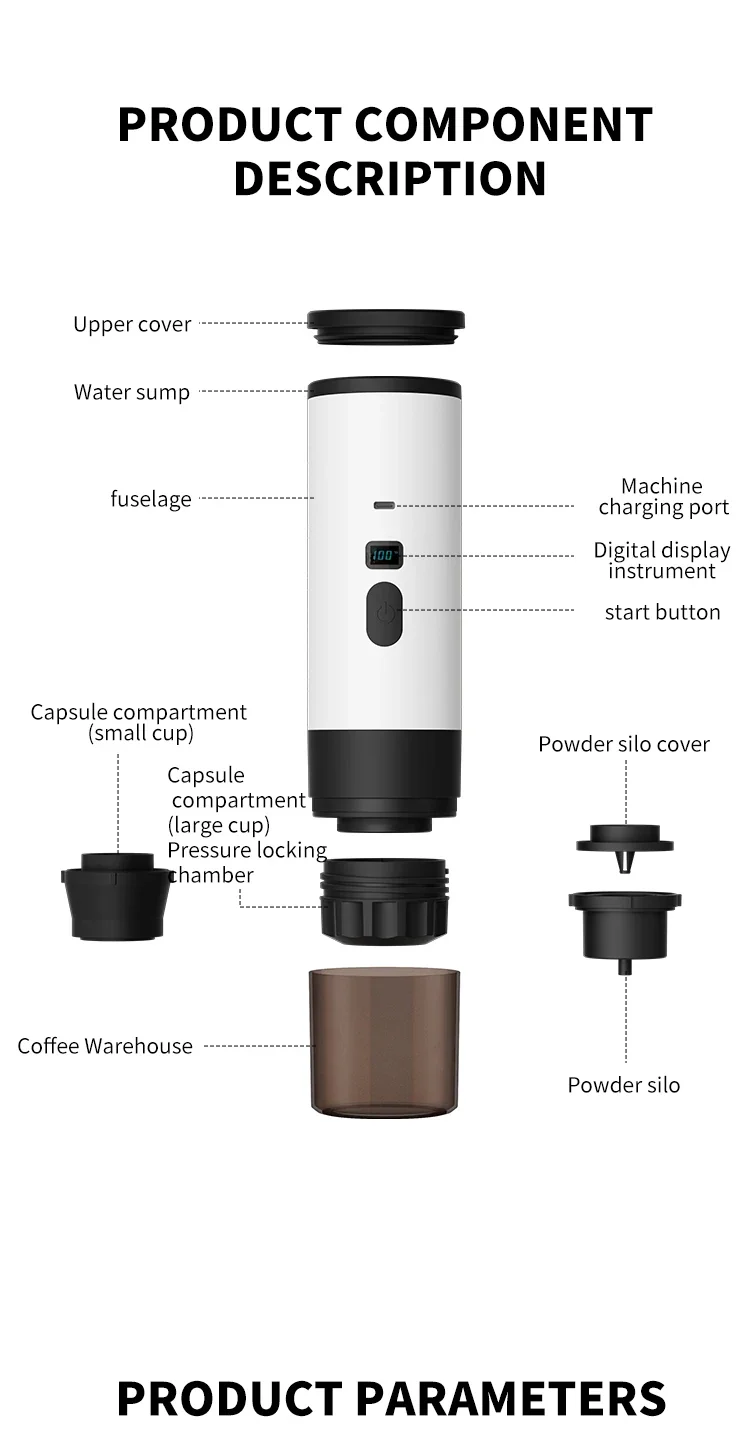

【Easy to Rinse Good to Disassemble】The portable espresso machine is designed with several parts separated, easy to clean.

【Package Include】Coffee machine mainframe+colour box package+USB cable+Manual+Coffee Spoon.

Model: XYD-003

Material: ABS+304+PC

Working voltage: 12V

Charging voltage/current: 5V/2A

Power: 72W

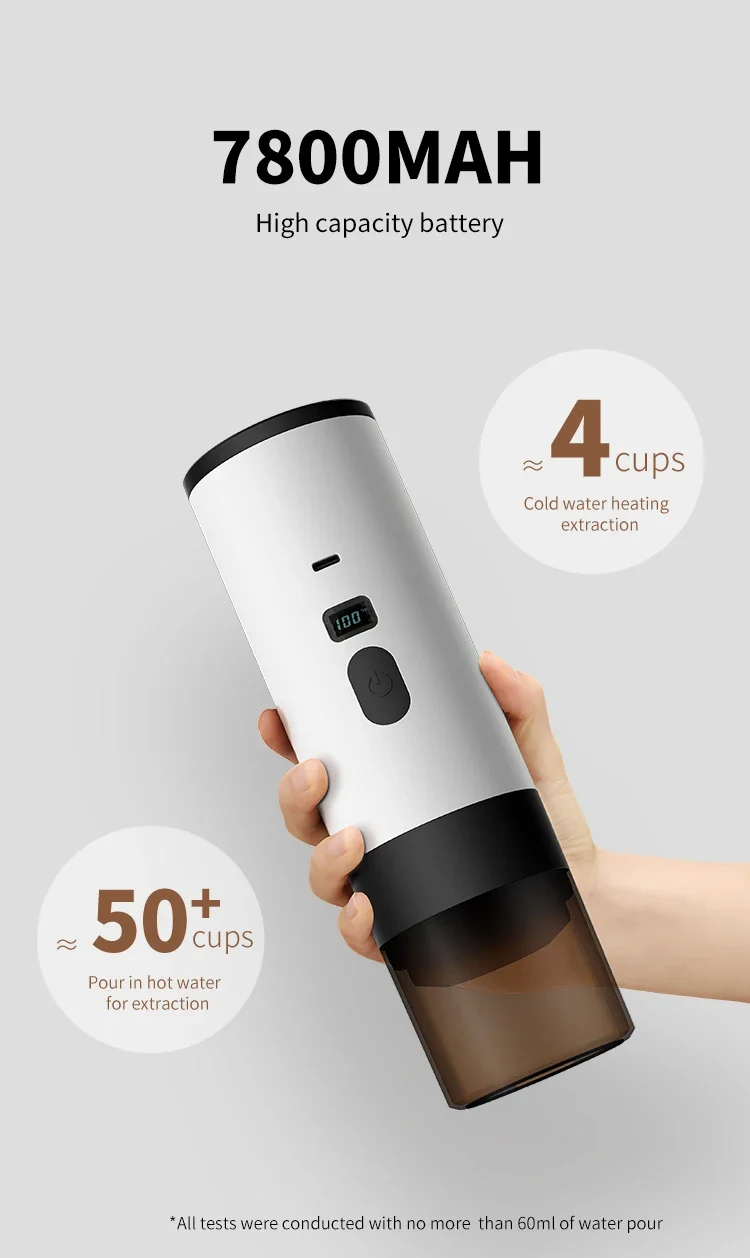

Battery capacity: 2600mAh * 3 (7800mAh)

Extraction time: 80 seconds

Boiling time: 8-10 minutes

Heating temperature of water: 90 ℃

Anti dry burning temperature: 150 ℃

Water tank capacity: 60ml

Coffee cup capacity: 90ml

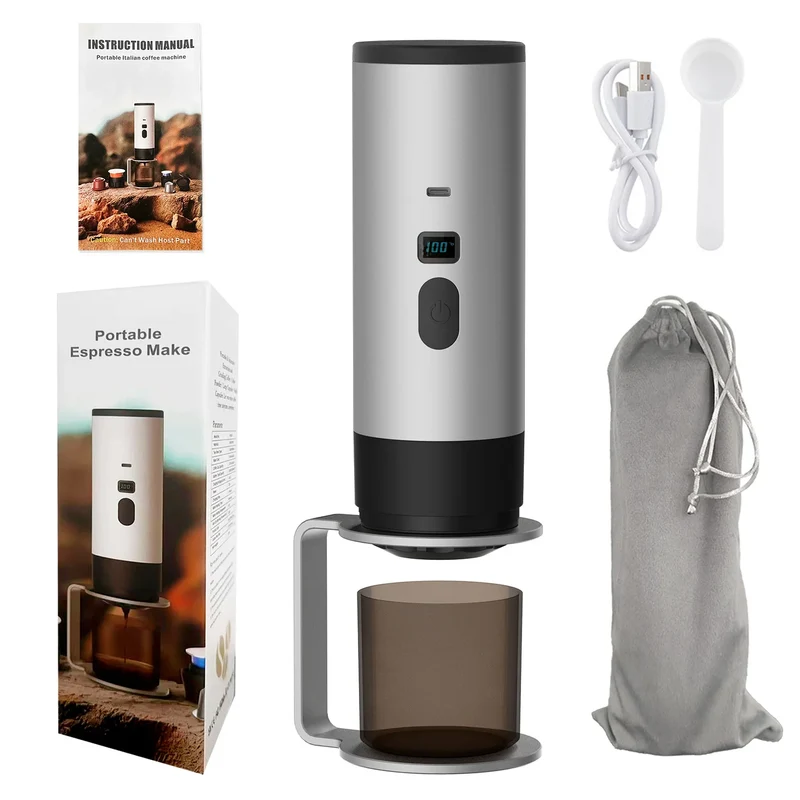

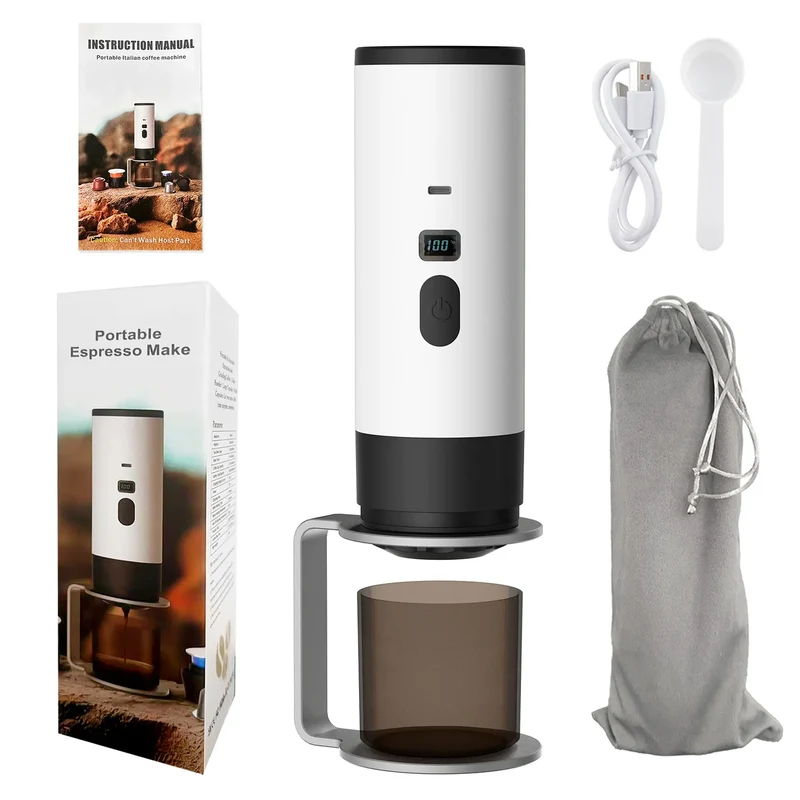

Packaging List: Host * 1 Charging Cable * 1 Instruction Manual * 1 Measuring Spoon * 1 Storage Bag * 1 Carbon Steel Bracket * 1

**Attention: The host part of the product cannot be washed with water, otherwise water flowing into the motherboard circuit will cause corrosion and affect the normal operation of the product in the future. Thank you!

Extraction mode:

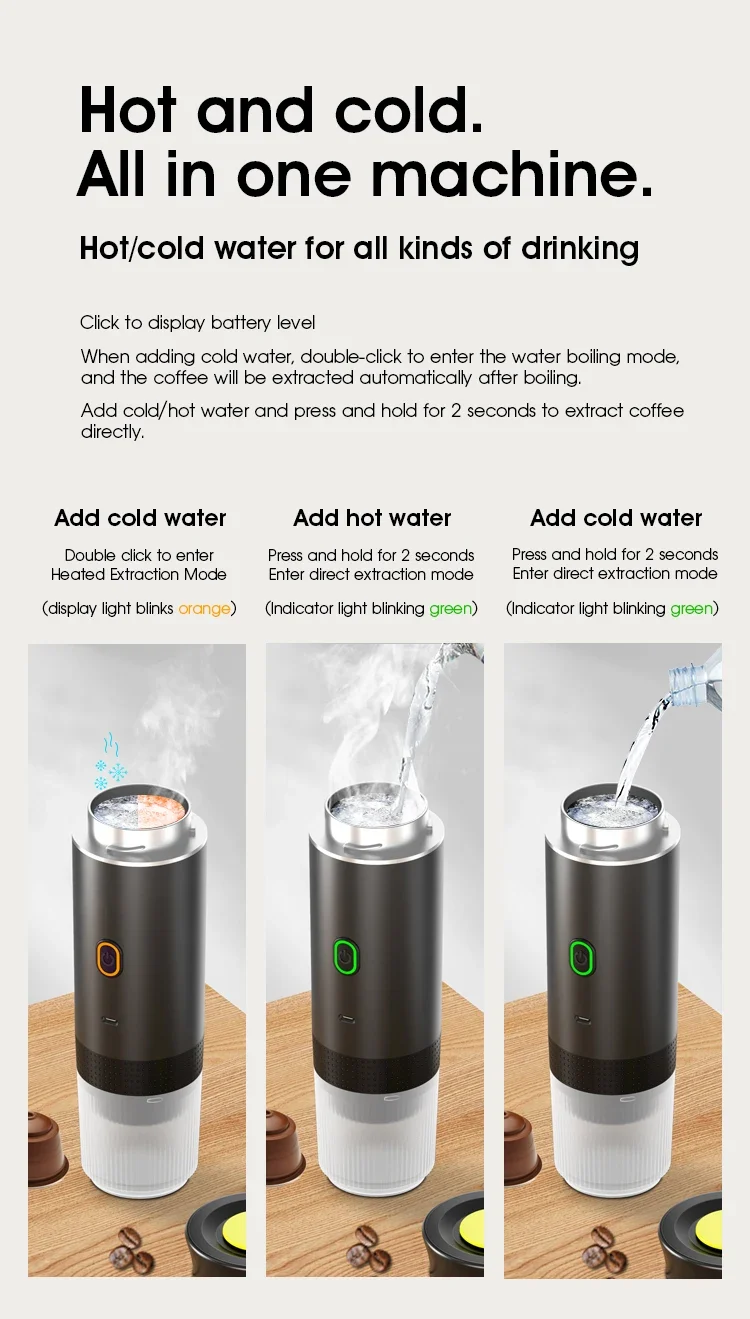

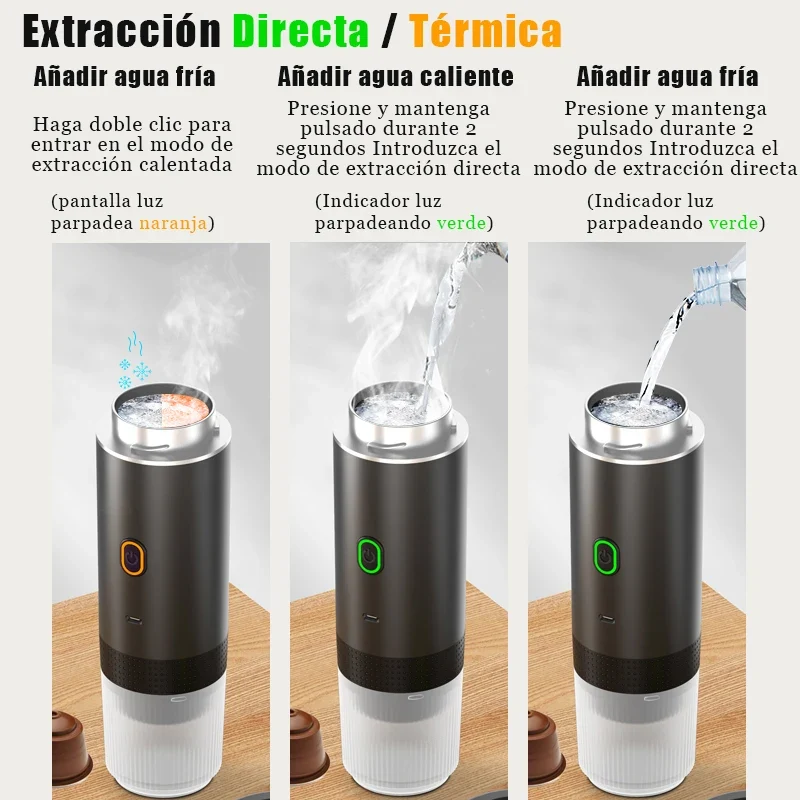

You can choose to add cold water or hot water for direct extraction, or add cold water for heating and extraction

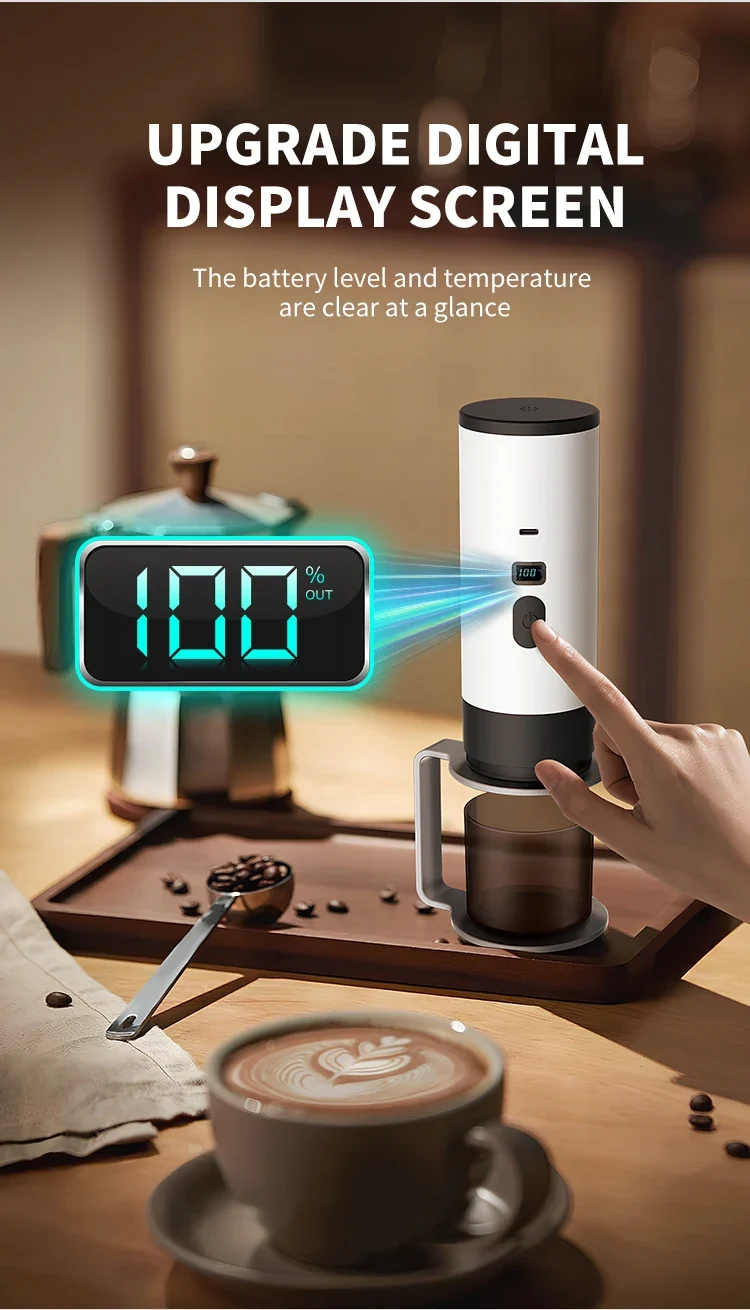

Direct extraction operation steps: Remove the lid and pour in cold or hot water, then cover the lid. Press the power button to turn on the device, check the remaining battery level on the screen, and then double-click the power button to start extracting coffee

Heating extraction operation steps: Remove the lid and pour in cold water, then cover the lid. Press the power button to turn on the device, check the remaining battery level on the screen, and then hold down the power button for 3-5 seconds to start heating. When the screen temperature reaches 90 ℃, coffee extraction will automatically begin.

**Attention: When extraction is complete or the machine is not working, the power will automatically turn off.

Regarding charging:

1.When the battery level drops to 20%, an early warning prompt will appear. Please charge it in a timely manner. During the charging process, the battery level will be displayed on the screen. (The product cannot work during the charging process and needs to be fully charged before the machine can function properly)

2. It is recommended to use a 5V 1/2A charger to avoid using fast charging chargers that may cause high voltage.

3. Do not use in damp environments (such as bathrooms) or near high-temperature stoves.

Safety Reminder:

1. The coffee outlet and cup holder may generate heat, so please do not let children get close to them during operation to avoid touching them.

After the production is completed, wait for the machine to cool down before storing.

2. Do not turn on the water tank when there is no water to avoid damaging the heating element for a long time.

4. Clean the equipment after use and keep it dry.

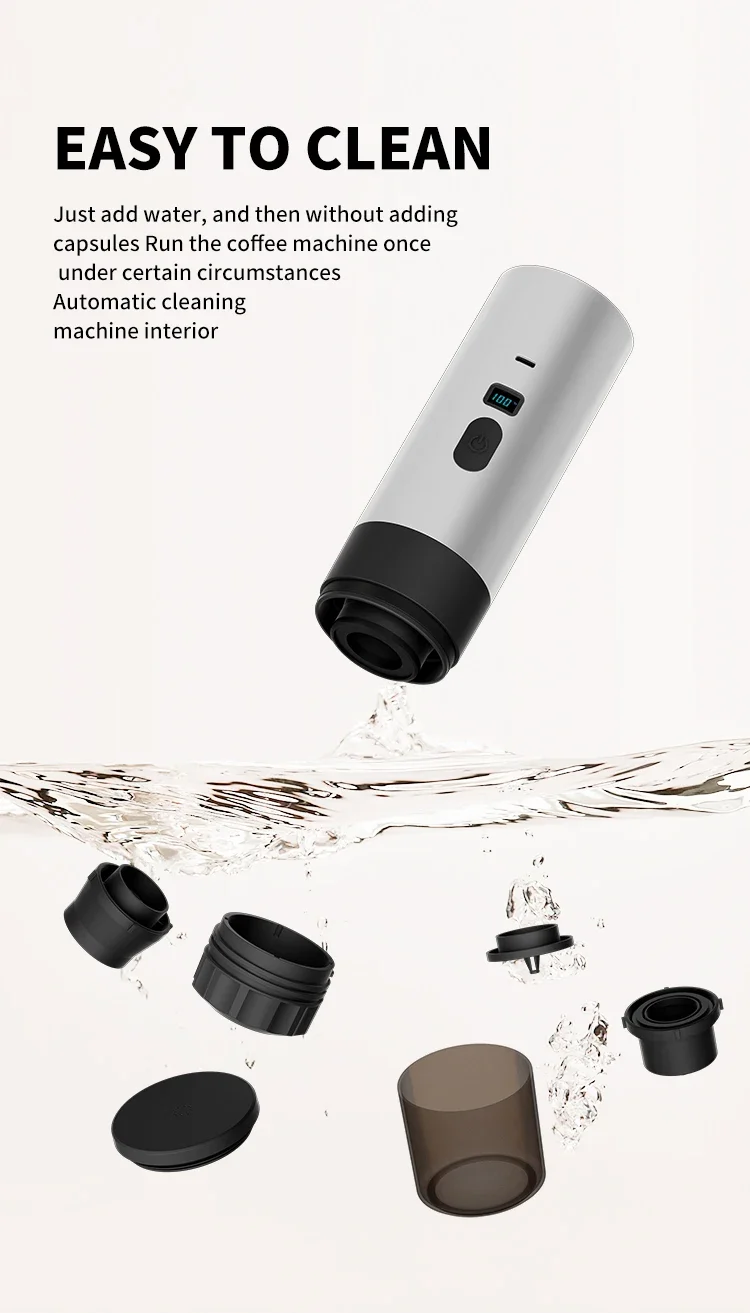

Cleaning and maintenance:

1. After each use, remove the used capsules, empty the capsule slot to prevent coffee grounds from remaining moldy, and pour out the water in the waste water tank to prevent bacterial growth.

2. When storing, use the original protective bag to avoid violent shaking or collision of internal components.

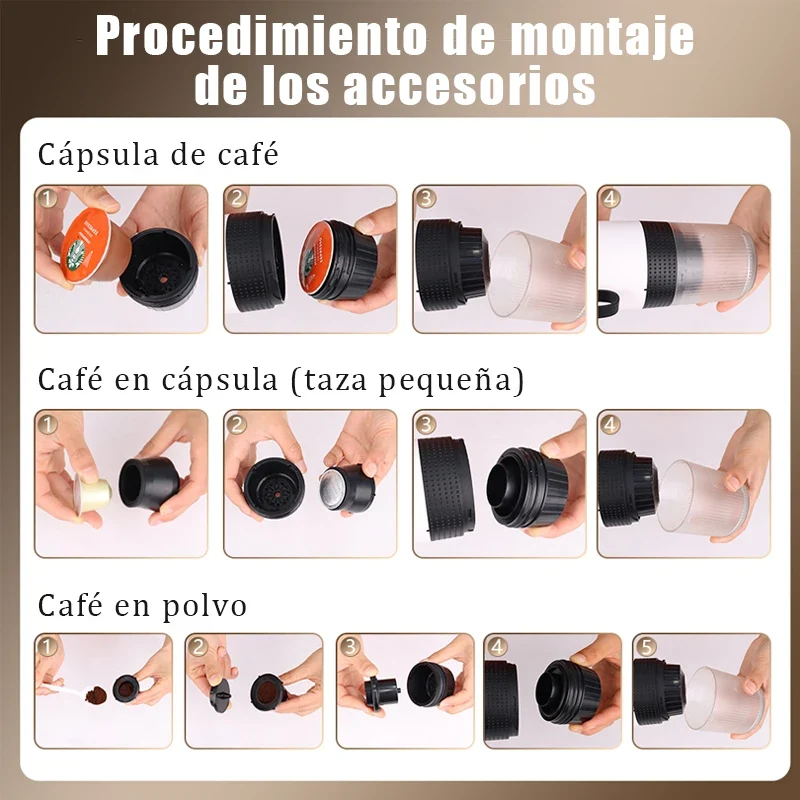

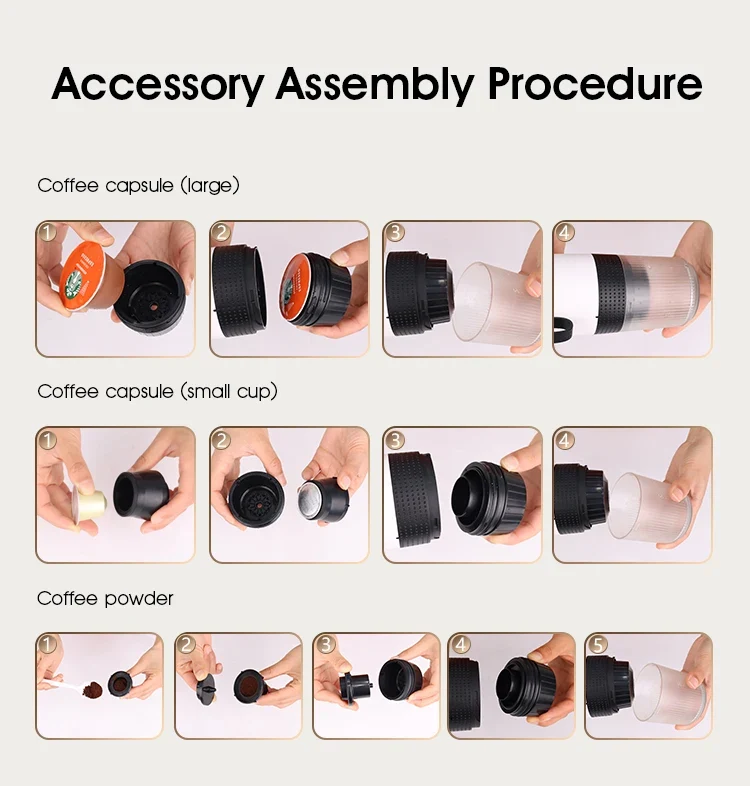

Precautions for installing coffee capsules:

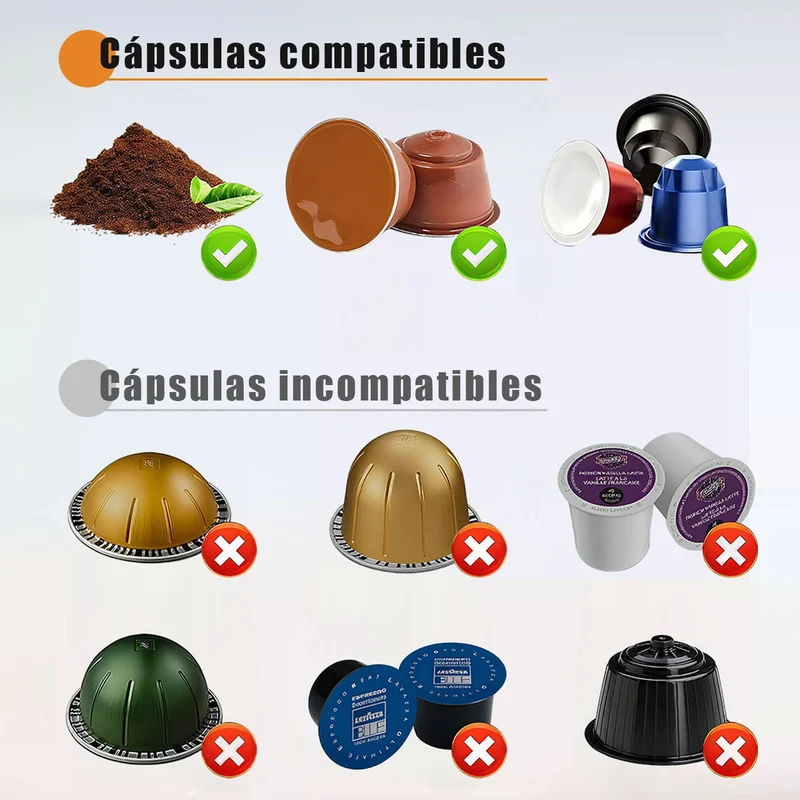

1. Capsule compatibility: Ensure that the coffee capsules are compatible with the machine model to avoid blockage or damage caused by incompatibility.

2. Capsule loading: Ensure that the capsule is placed in the designated position, avoiding tilting or misalignment. Some models of capsules need to be punctured, so pay attention to the force during operation to prevent powder leakage.

3. Water volume control: Adjust the water output according to the capsule type (such as espresso or large cup coffee mode) to avoid excessive extraction or coffee dilution. Do not exceed the maximum mark when adding water to the water tank to prevent overflow.

4. Temperature management: After turning on, wait for the preheating to be completed (indicator light on) before operating. When making multiple cups continuously, leave an interval of 1-2 minutes to prevent overheating.

Problem troubleshooting answers:

Problem 1: The coffee machine does not produce water; Weak water flow

Answer: Water impurities are blocking, try cleaning and removing water impurities

Problem 2: Coffee machine leaking water

Answer: Improper use and installation of coffee capsules/aging of sealing rings. Reinstall the capsules correctly or replace the sealing rings

Question 3: Machine shuts down/does not turn on

Answer: Overheating/power-saving protection; Press the power button lightly to restart, or replace the charger for charging

Question 4: The machine only produces water without extraction

Answer: The large/small capsules have not been punctured; Remove the large capsule compartment and tighten it again until it can no longer be tightened
